Finally started my tear down this weekend. Everything looks pretty good considering it's 36 years old.
The only problem I encountered was breaking loose the middle sub frame bolts. Looks like I have some welding to do on sub frame nut retainers.  :-x






Area under the battery tray held up pretty good.










Factory original red oxide primer is such a beautiful sight.  :)



A shot of my cowl tag.




My fuel gauge exhibited the typical symptom of a shorted level sensor so I decided to drop the tank and see how bad it was rusted plus wanted to hunt for my build sheet which turned out to be a bust. The rust was a lot worse than I thought so I ordered a new tank and level sender assembly instead of having the original cleaned and coated.

I was not satisfied with the replacement tank but decided to use it with some mods to correct some of the plumbing issues.
I still have to clean up the clips and return line before I reinstall the tank. I'm going to clear coat the tank to try and help maintain the natural steel look.

The factory setup:



Replacement Tank:



Dusted off the plumbing tools and got to work:



Double flared the tank vent line:



Decided to bend my own vent line and not chop up my original. The supply line on the replacement level assembly has a slightly different route:



Return and Vent Connections:



Front side of tank:



Tank connections:



Here is a neat little trick that I learned. Don't fully compress the adapter when doing the first step of the double flare. Stop short of bottoming the adapter out. When you pull the flare adapter off your left with a little bump that holds the hose a little more snug than just straight tubing.


« Last Edit: September 14, 2017, 10:04:27 PM by Ag77T/A »

Bullet

  • Active Forum Member
  • *
  • Posts: 369
Re: My Silver '77 T/A Refresh Project
« Reply #1 on: February 14, 2013, 03:40:16 AM »
Ingenuity at it's finest.  Nice work!
2002 WS.6 M6

LeighP

  • Jedi Council
  • Oracle Forum Member
  • *
  • Posts: 20653
Re: My Silver '77 T/A Refresh Project
« Reply #2 on: February 14, 2013, 07:08:52 AM »
Nice plumbing work...very clean!
I also do the same with the flaring tool....make that little raised section on the end for the hose to seal better.
Regards,
Leigh

Sydney, Australia
1968 Pontiac Firebird 428 5 speed coupe

Former Firebirds -
1969 Pontiac Firebird 400
1971 Pontiac Firebird 455
1977 Pontiac Trans Am
1976 Pontiac Trans Am
1967 Pontiac Firebird 400 convertible
1967 Pontiac Firebird 400 coupe


Ag77T/A

  • Active Forum Member
  • *
  • Posts: 359
Re: My Silver '77 T/A Refresh Project
« Reply #3 on: April 26, 2013, 02:30:23 PM »
**************    Engine Cleanup & Paint / Bottom End Freshening Up & Upgrades   ****************

Crank removed to install BOP's Viton rear main seal & one piece oil pan gasket also cleaning up for paint and installing a new set of brass welch plugs:



Crank looks great. Installing new bearings while it's apart:



Partial VIN on the block:

« Last Edit: September 14, 2017, 10:06:24 PM by Ag77T/A »

Ag77T/A

  • Active Forum Member
  • *
  • Posts: 359
Re: My Silver '77 T/A Refresh Project
« Reply #4 on: May 25, 2013, 11:17:54 PM »

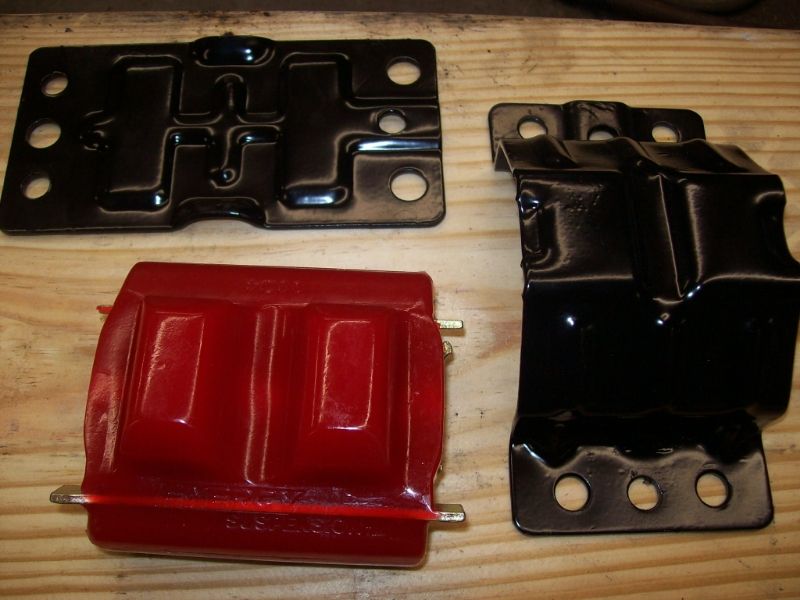

*******************    Installing Polyurethane Engine Mounts    **************************
